PRD MaxMD Cert Issuance Instructions

PRD MaxMD Cert Issuance Instructions

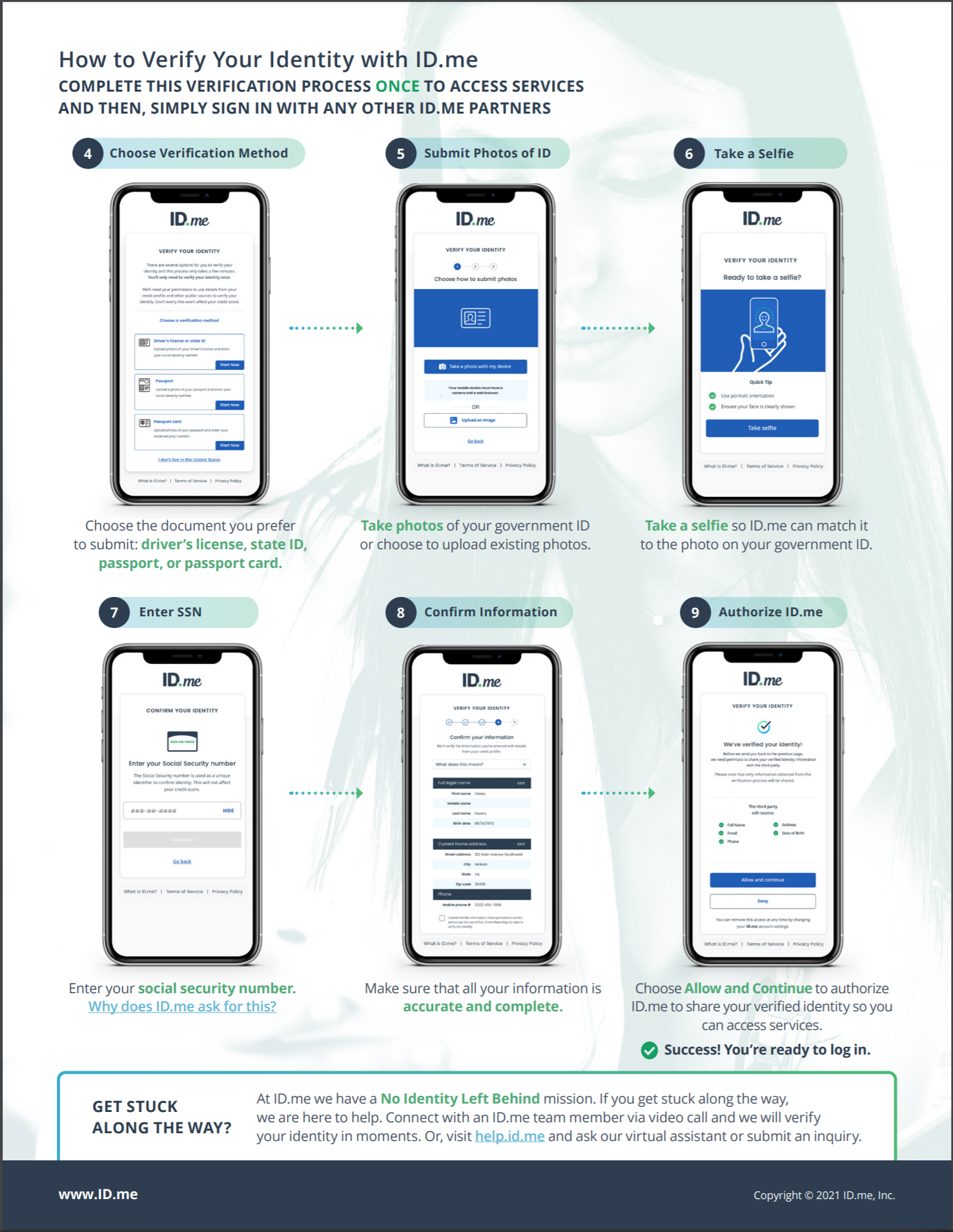

1. Identity Proofing

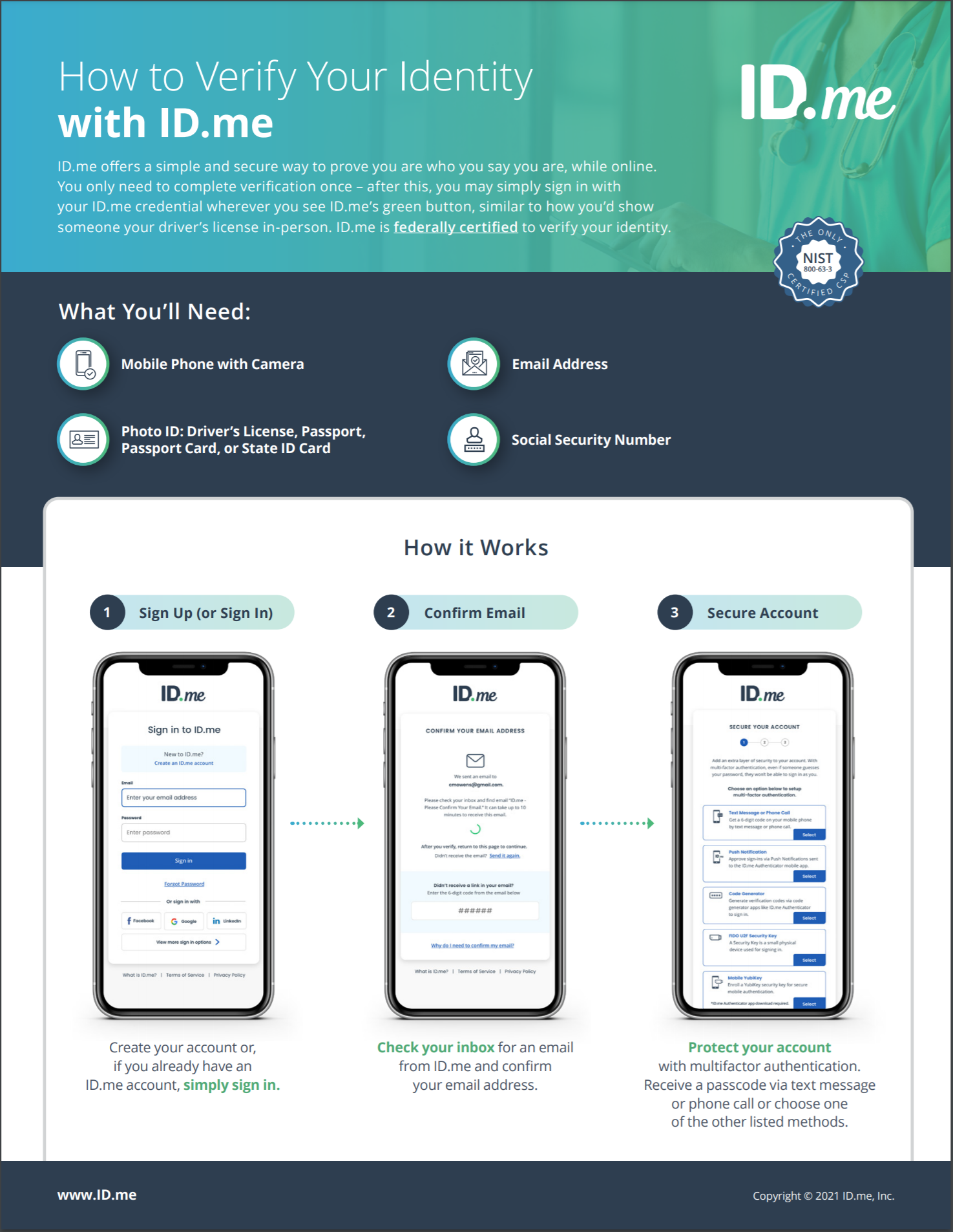

As a part of the certificate issuance process with MaxMD, you'll verify your identity with ID.me, a federally-certified identity provider.  The ID.me workflow is simple and straightforward and the entire process should only take a few minutes.  Please note: you may be routed to a video call to verify with ID.me.



If you have any questions, please reach out to DirectTrust by replying to support@directtrust.zohodesk.com via your invitation email ticket. In addition, you can check out ID.me's support page at help.id.me and FAQs at https://desk.zoho.com/portal/directtrust/en/kb/articles/id-me-faqs







2. Creating your Certificate

Now that your ID.me account is created and your identity verified, you will be redirected to your account within MaxMD's certificate issuance workflow.

Verifying the Domain

To create your certificate you must first verify your domain. You can verify domain by Email or DNS TXT.

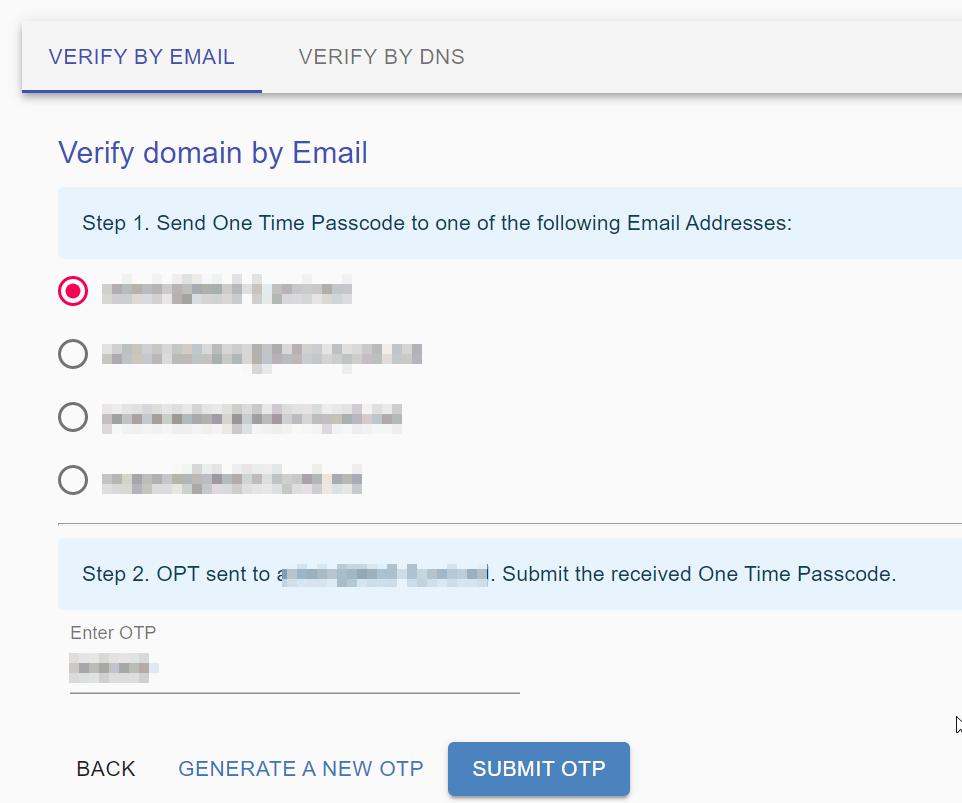

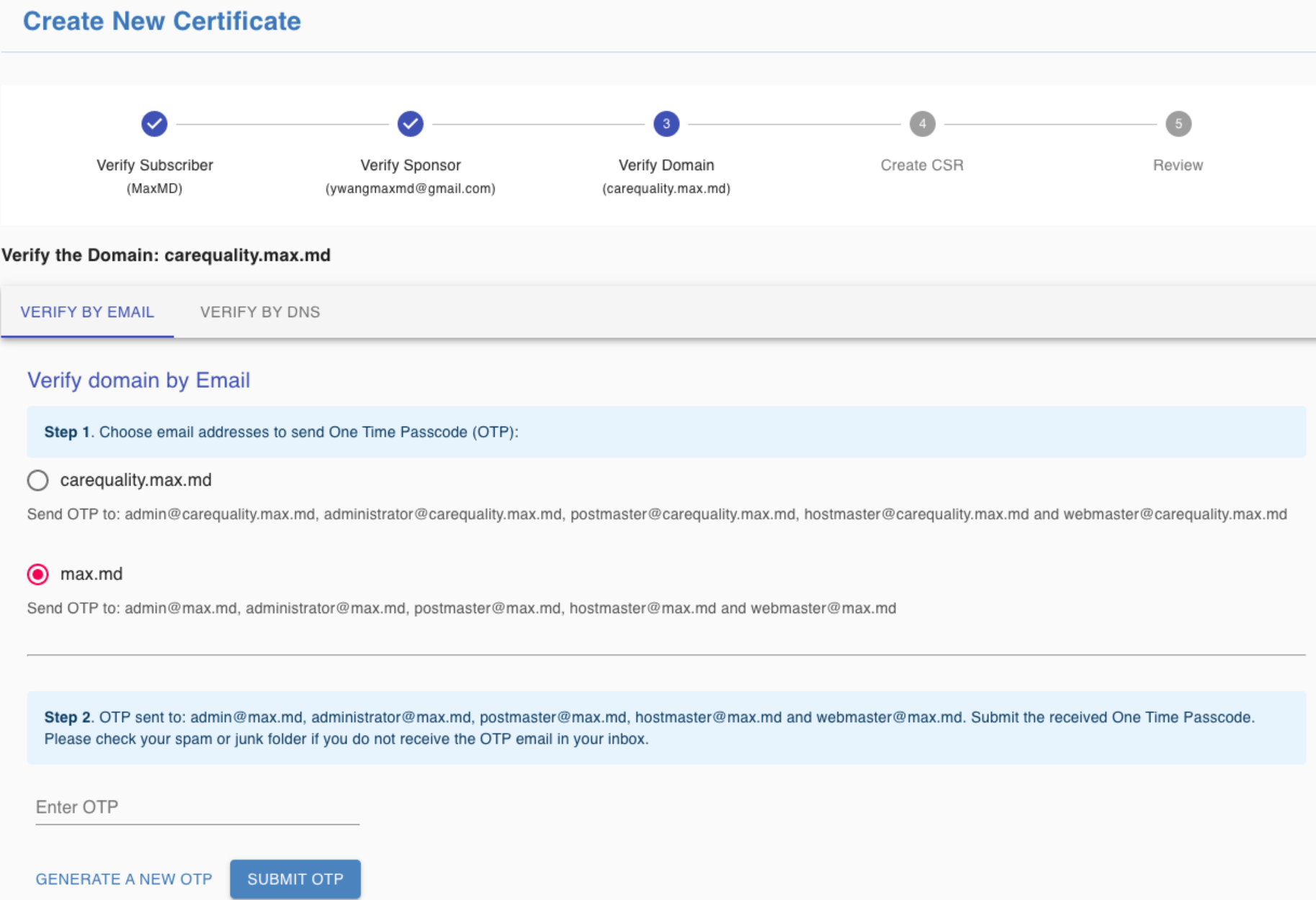

Verify by Email

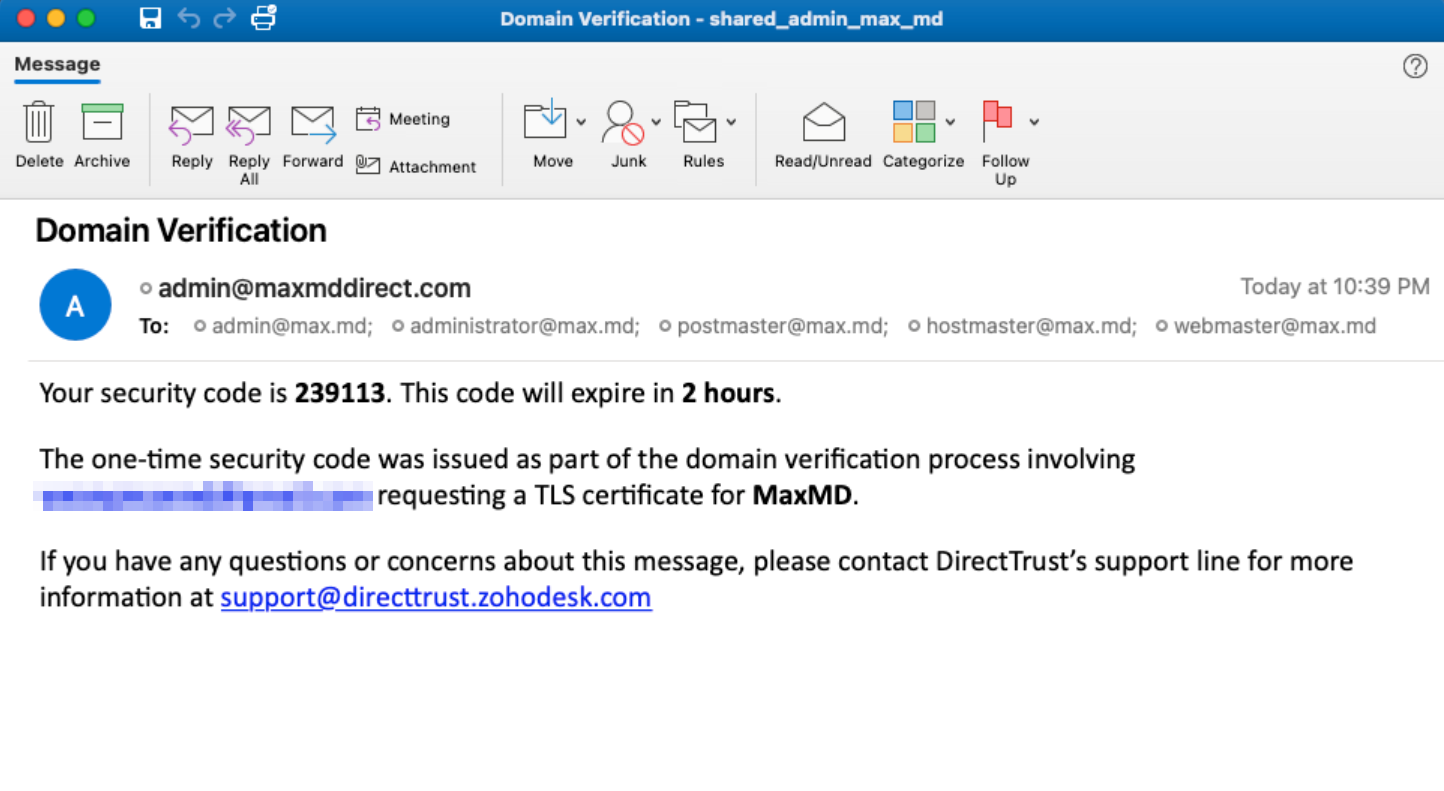

To verify domain by email, select the applicable email address and generate a one-time password (OTP).


Enter OTP and SUBMIT OTP.

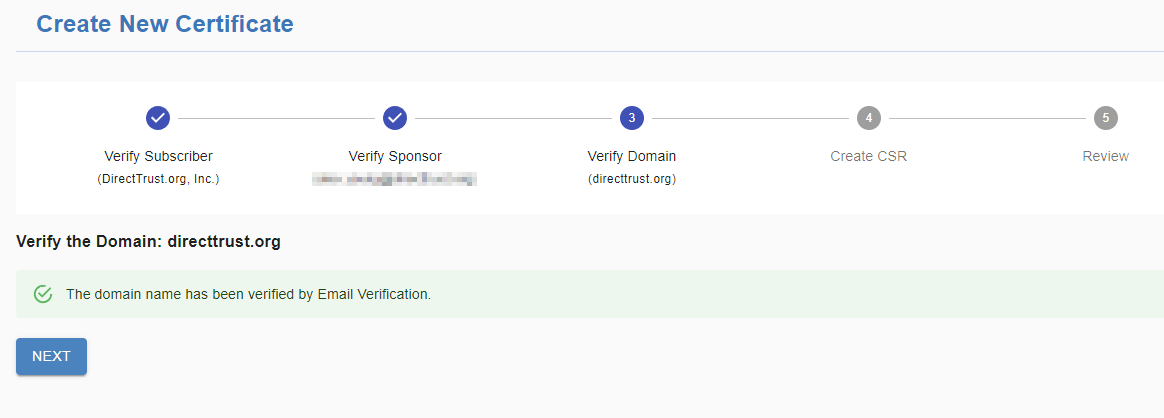

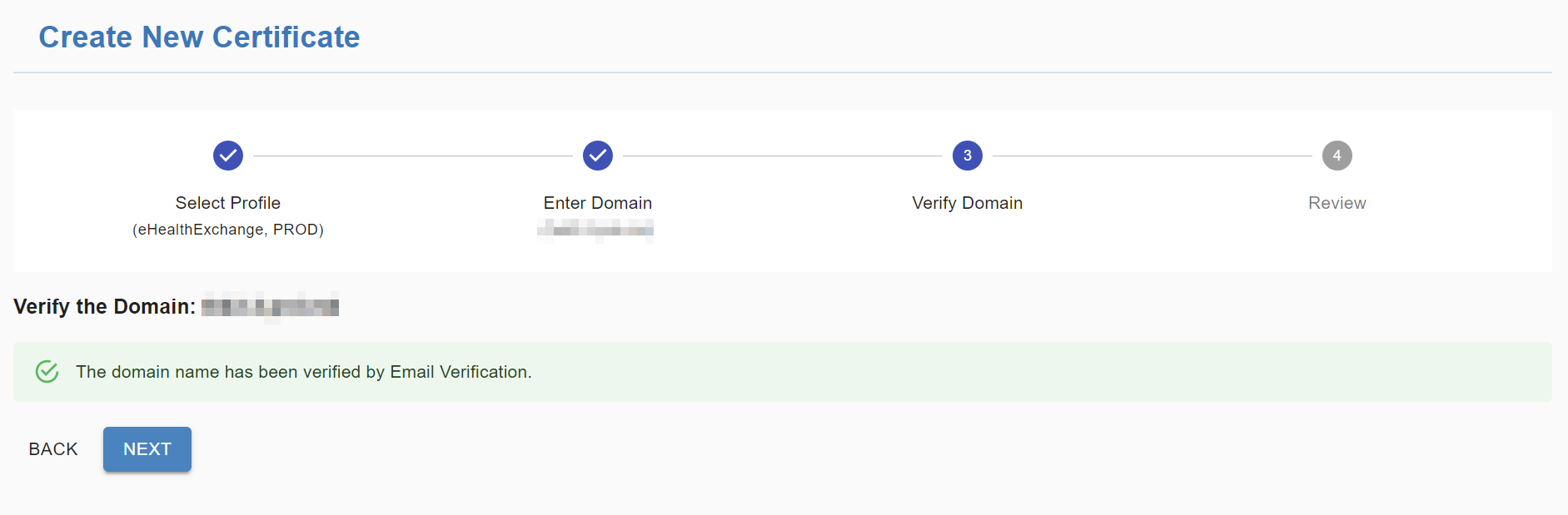

The domain is verified. Click NEXT.


Verify by DNS

To verify domain with DNS, start by clicking the VERIFY BY DNS tab.


Next:
  • Copy the generated token (including “MaxMD-Verification=”)

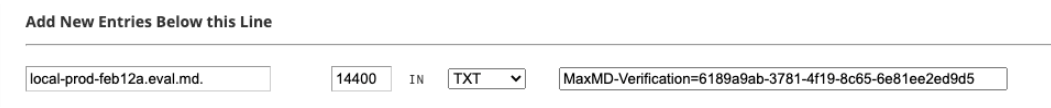

  • Go to your DNS management portal and create a new TXT record
    • In the Host field, enter the domain name
    • In the Time-to-Live (TTL) field, enter the TTL value or use the default value
    • In the Type field, select TXT
    • In the Value field, paste the token that you copied from the MaxMD Certificate portal







After the TXT record is created, wait for about 30 seconds to allow the DNS servers to synchronize the new change. Then click VERIFY DNS RECORD.

Creating the Certificate Signing Request

Now that your domain is verified, you can have MaxMD automatically generate a Certificate Signing Request (CSR) and key using your Subscriber and Sponsor information OR upload your own CSR.
NOTE: If you want more than one Organizational Unit (OU) value associated with your certificate, you will need to create and upload your own CSR (skip to Upload CSR method).

Auto Generate CSR method

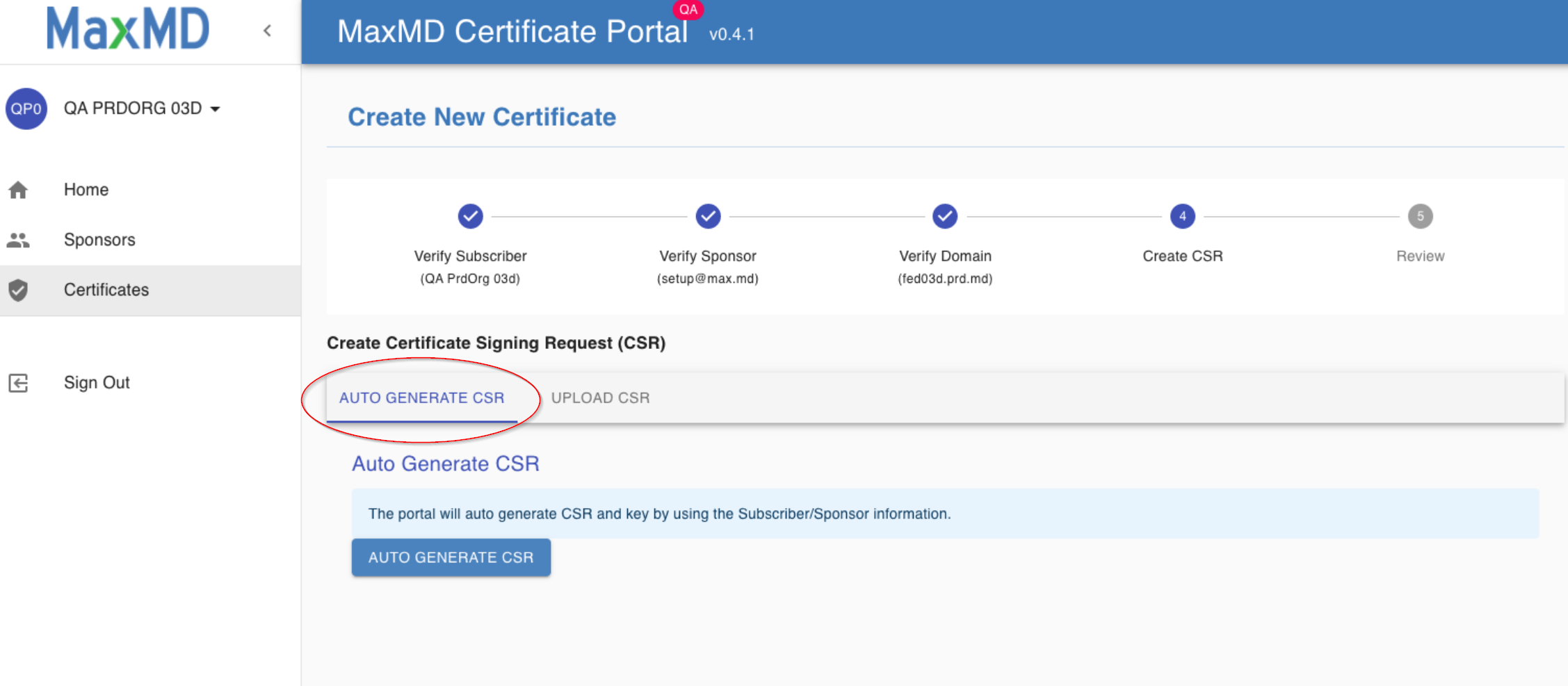

Click AUTO GENERATE CSR.

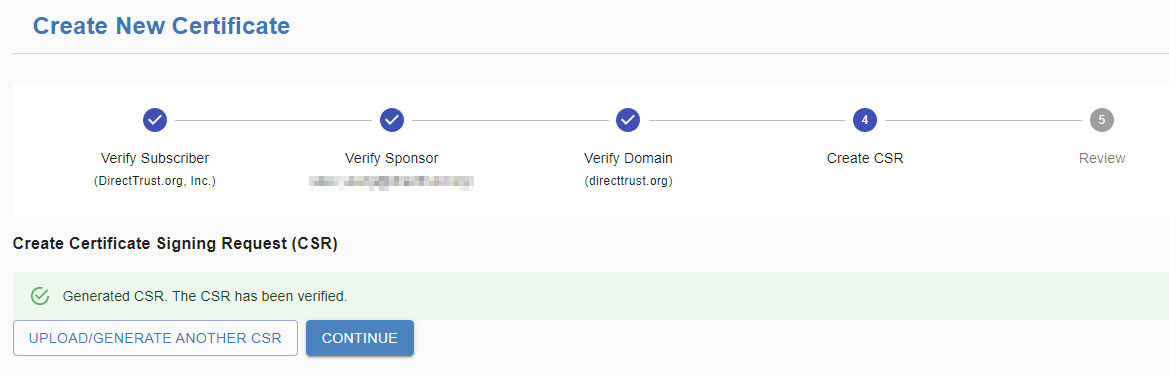

MaxMD will generate and verify the CSR. Click CONTINUE to create the certificate.

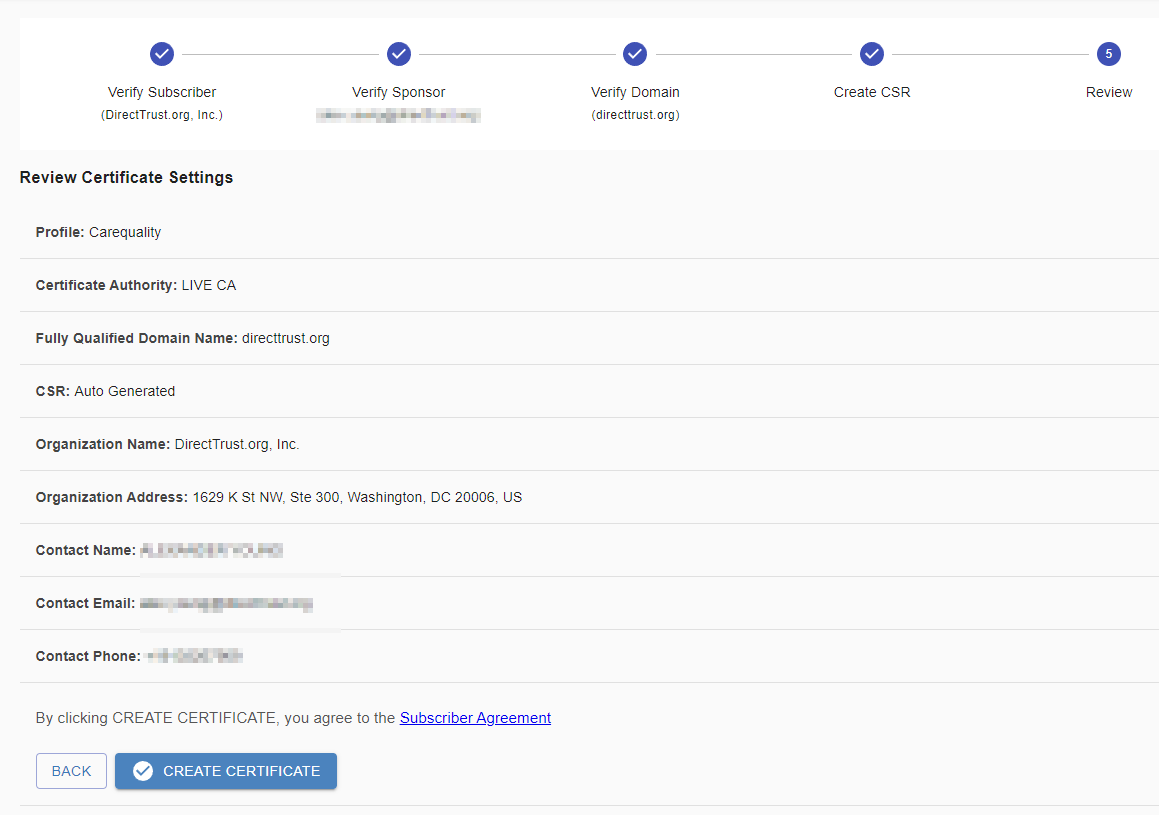

Review and CREATE CERTIFICATE.



Congratulations! Your certificate is now created.




Upload CSR method

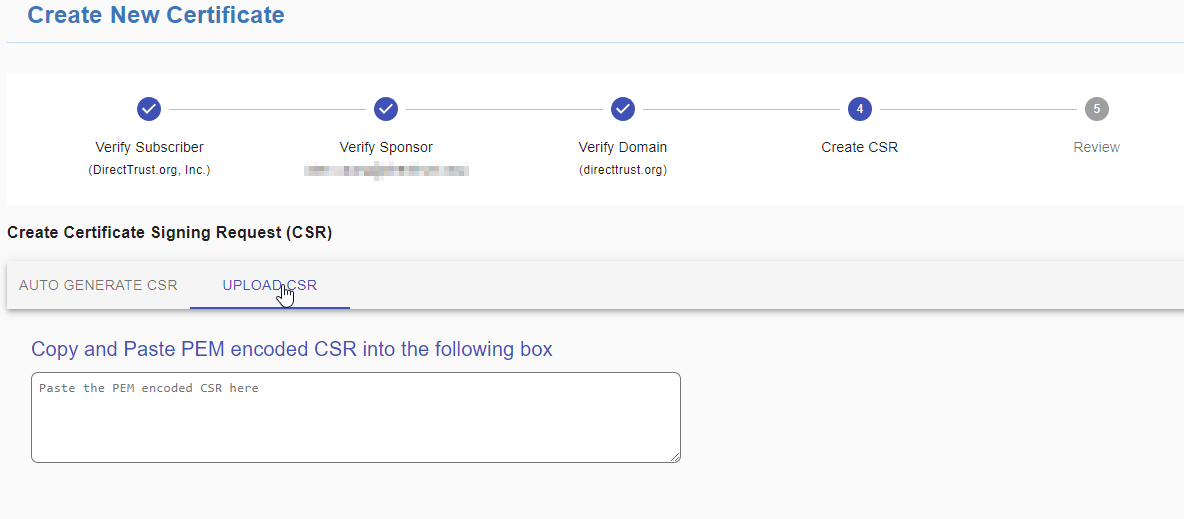

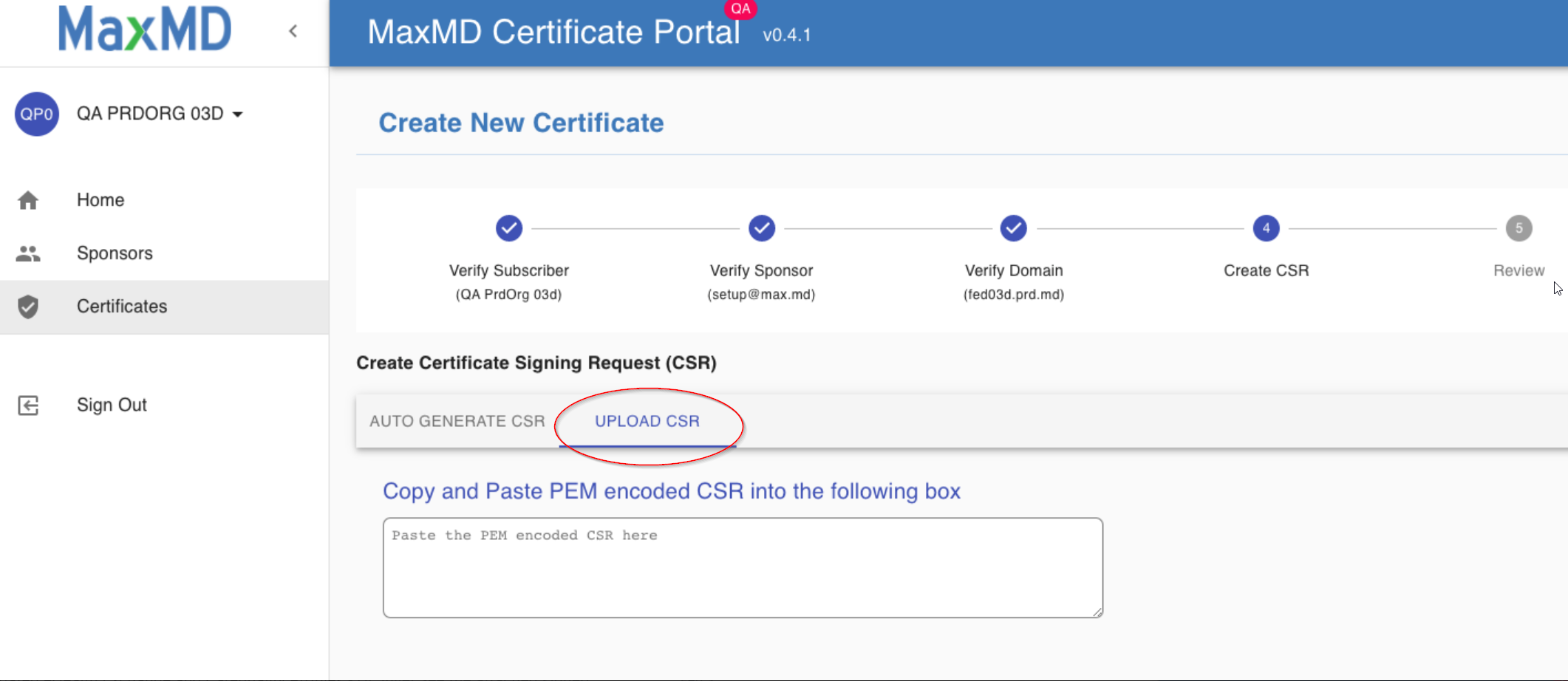

If you prefer to upload your own CSR, click the UPLOAD CSR tab and paste your PEM encoded CSR.



If you have already generated your own CSR you can proceed to section 3. Exporting or Downloading your Certificate


Generating a CSR is done with OpenSSL or Windows IIS. We recommend OpenSSL to make later steps easier. You can download OpenSSL at https://www.openssl.org/source/ or refer to Windows IIS instructions that match your environment. Example: https://www.ssl.com/how-to/generate-a-certificate-signing-request-csr-in-iis-10/

On a Windows machine, open Command Prompt and enter the following command with real values for domainname, organizationName, initiative, and organizationalUnit(optional) in the following order:
openssl req -out domainname.csr -new -newkey rsa:2048 -nodes -keyout domainname.key -subj
"/CN=domain.org/C=US/O=organizationName/OU=initiative/OU=optionalOrganizationalUnit"

NOTE: Because MaxMD is validating your CSR against previously validated Organizational information; City, State are not required. If you add them to your CSR, it must match what is on file. If you need to make a change, please alert DirectTrust and a new certificate link will be created for you.

The OU initiative value will differ for eHealth Exchange Participants and Carequality Implementers.

For Production certificates, the required OU values are as follows:
      eHealth Exchange: OU=NHIN
      Carequality: OU = CAREQUALITY

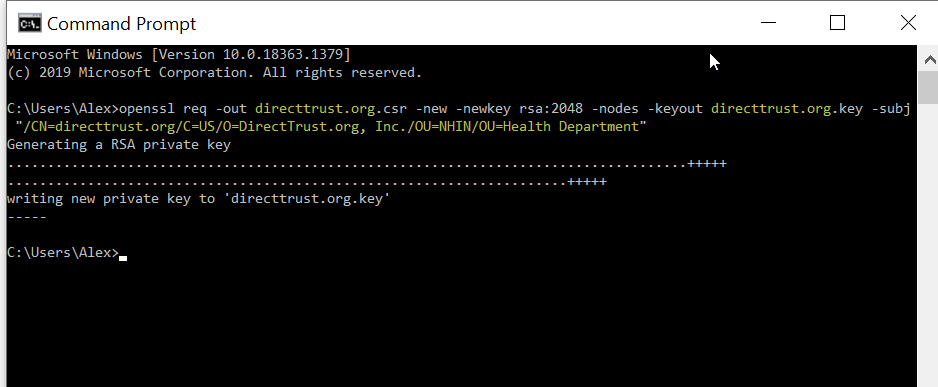

Example OpenSSL command for a eHealth Exchange certificate for DirectTrust:
openssl req -out directtrust.org.csr -new -newkey rsa:2048 -nodes -keyout directtrust.org.key -subj "/CN=directtrust.org/C=US/O=DirectTrust.org, Inc./OU=NHIN/OU=Health Department"

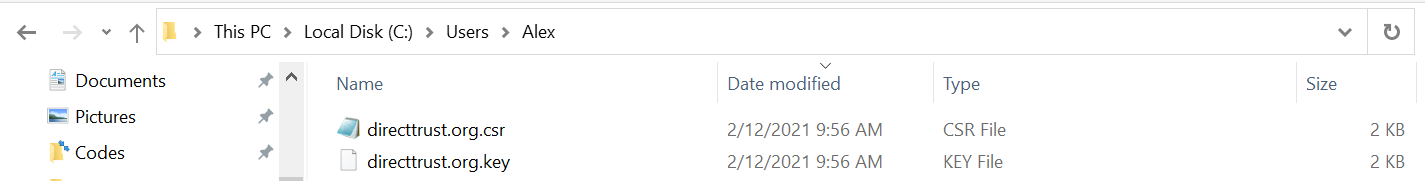

                    If successful, you will now have your PEM encoded CSR file and private key:

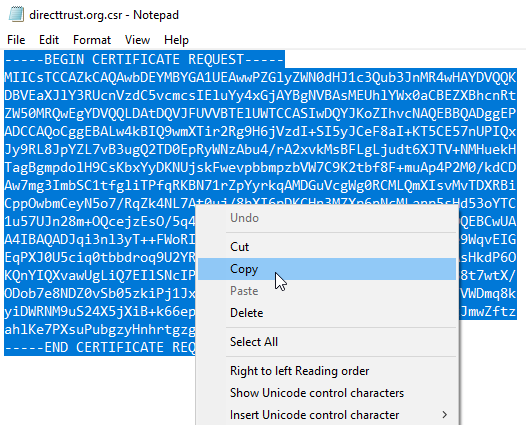

Open the CSR file and Copy the entire contents:


Click the UPLOAD CSR tab and paste your PEM encoded CSR.

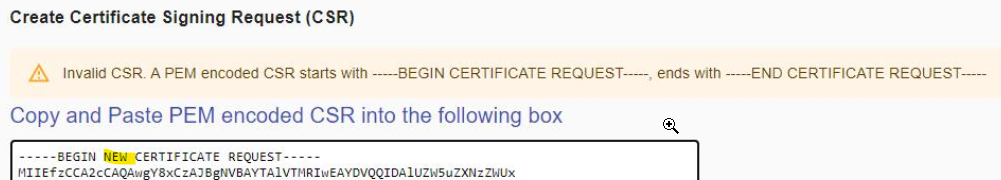

NOTE: If your CSR has the words "NEW" in it, delete them.

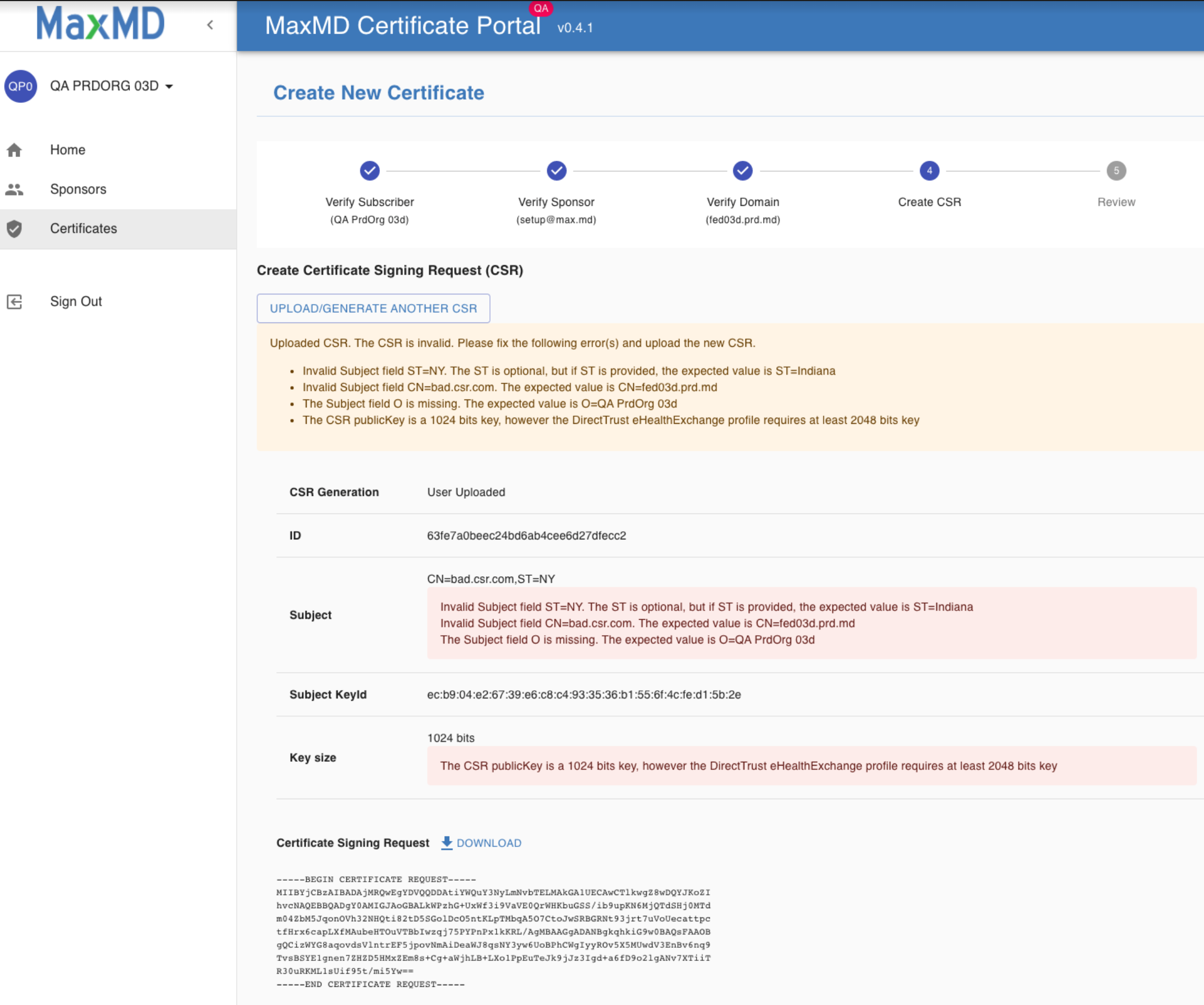

After uploading your CSR, MaxMD will validate the details against the certificate profile. If the CSR is invalid, the next screen will tell you why.

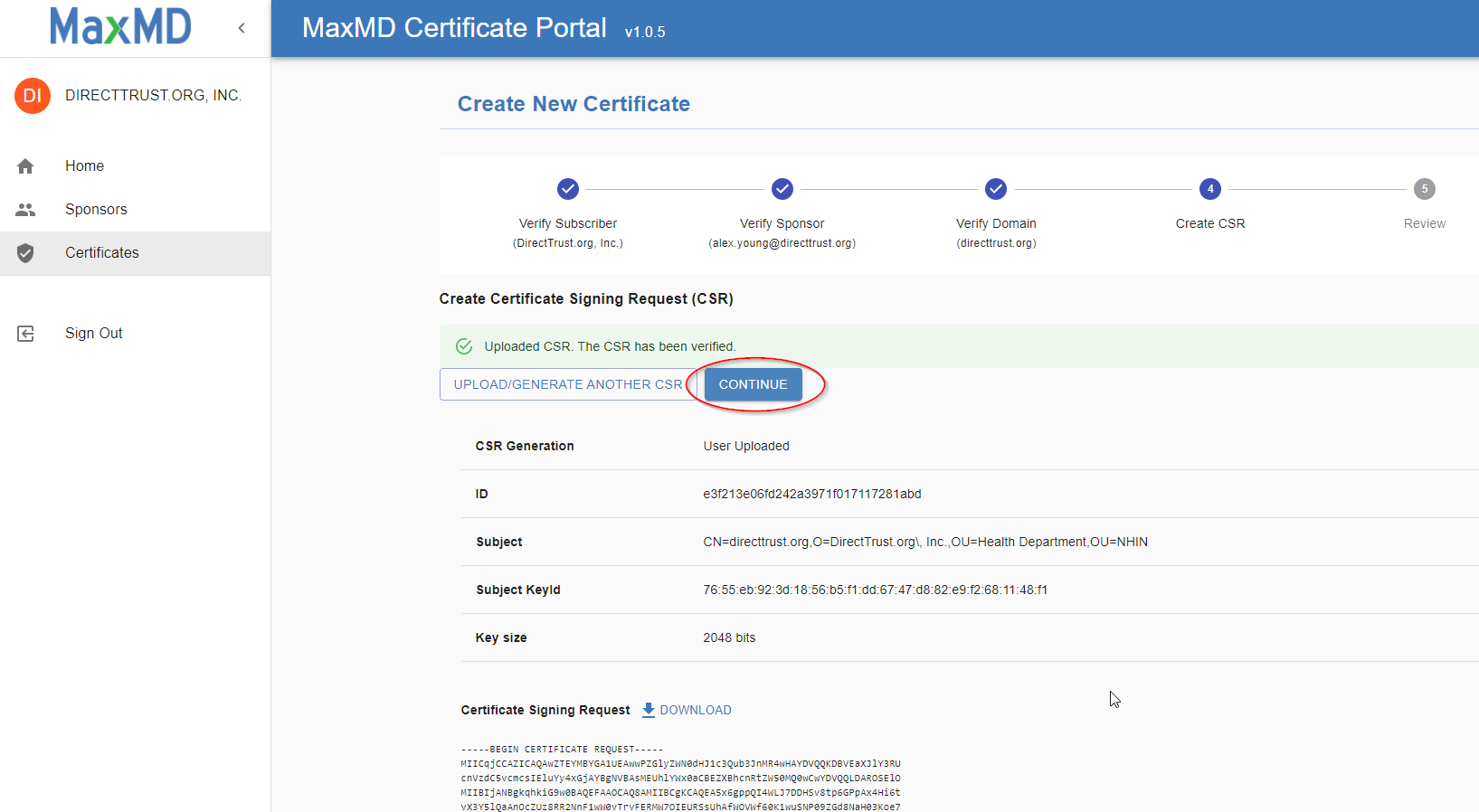

If your uploaded CSR is valid, you can CONTINUE to create the certificate.

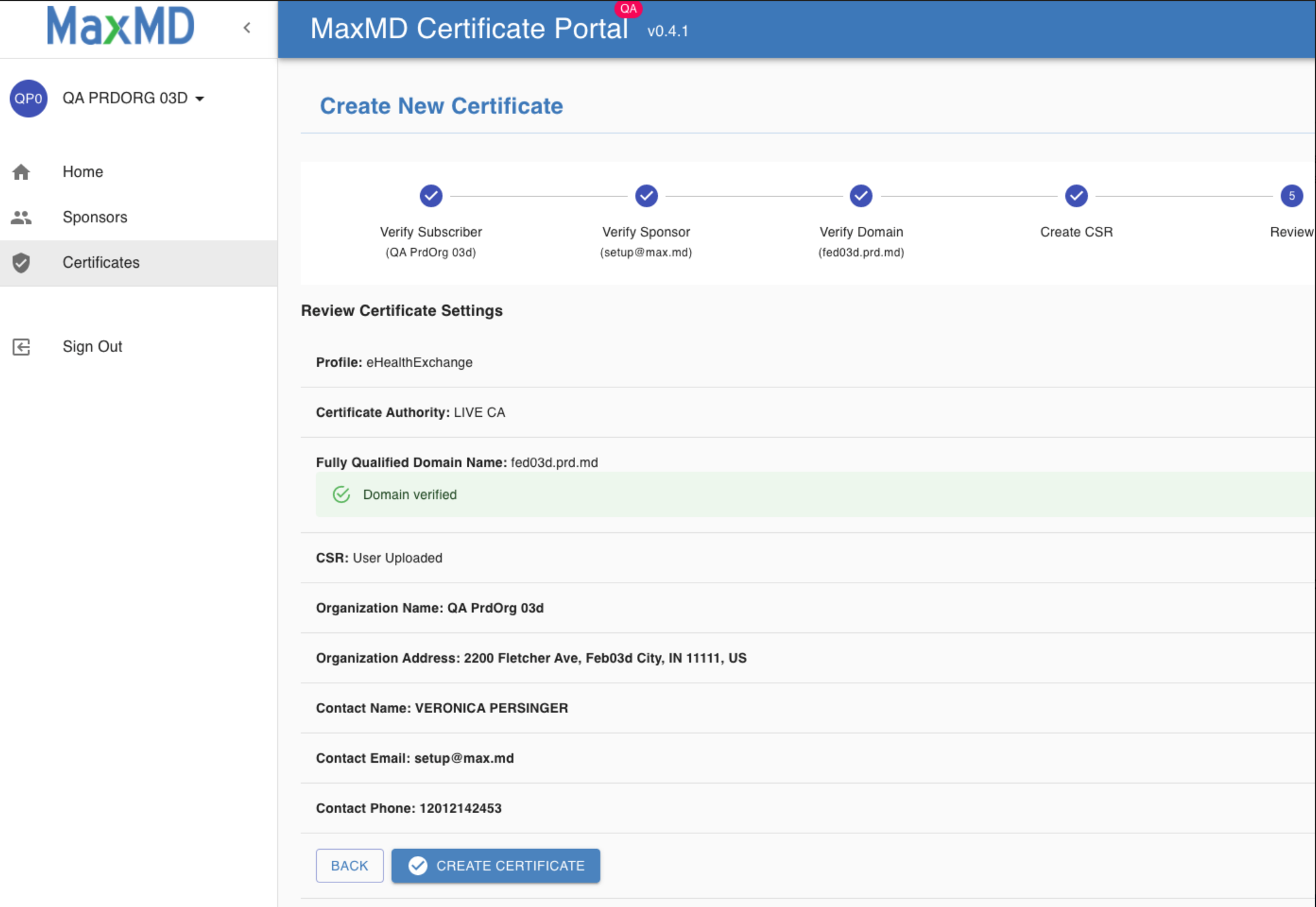

Review the certificate settings and click CREATE CERTIFICATE.



Congratulations! Your certificate is now created.



3. Exporting or Downloading your Certificate

Obtaining your installable certificate will vary based on how your certificate was created in the workflow.
  1. If MaxMD generated the CSR for you:
    1. Your certificate, CA certificates (intermediate and root), and the private key can be generated and exported together as a Keystore.
  2. If you uploaded your own CSR:
    1. Your certificate and the CA certificates (intermediate and root), will need to be manually downloaded and joined with your private key to create a PKCS12 file.

Exporting your Key (Auto Generated CSR method)

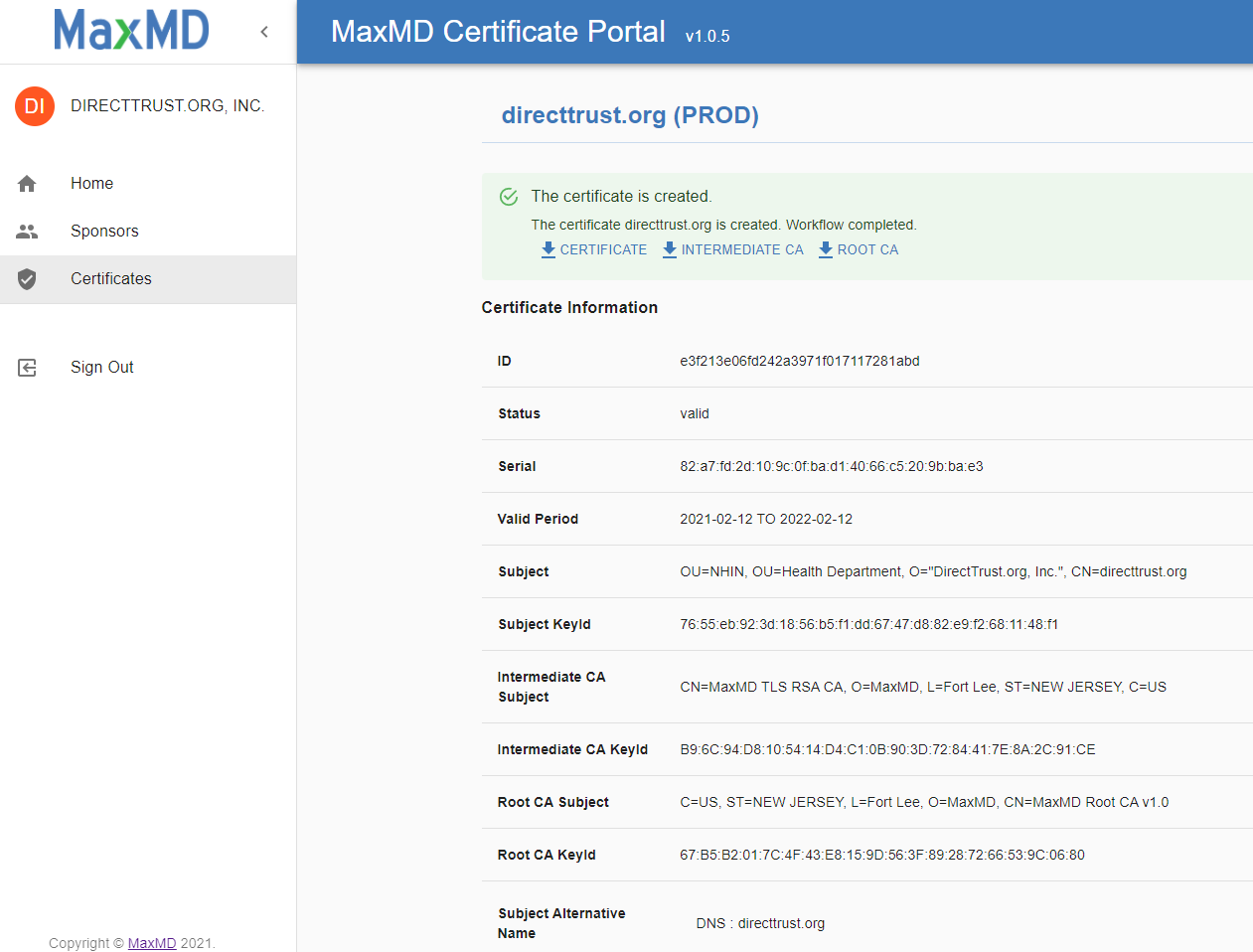

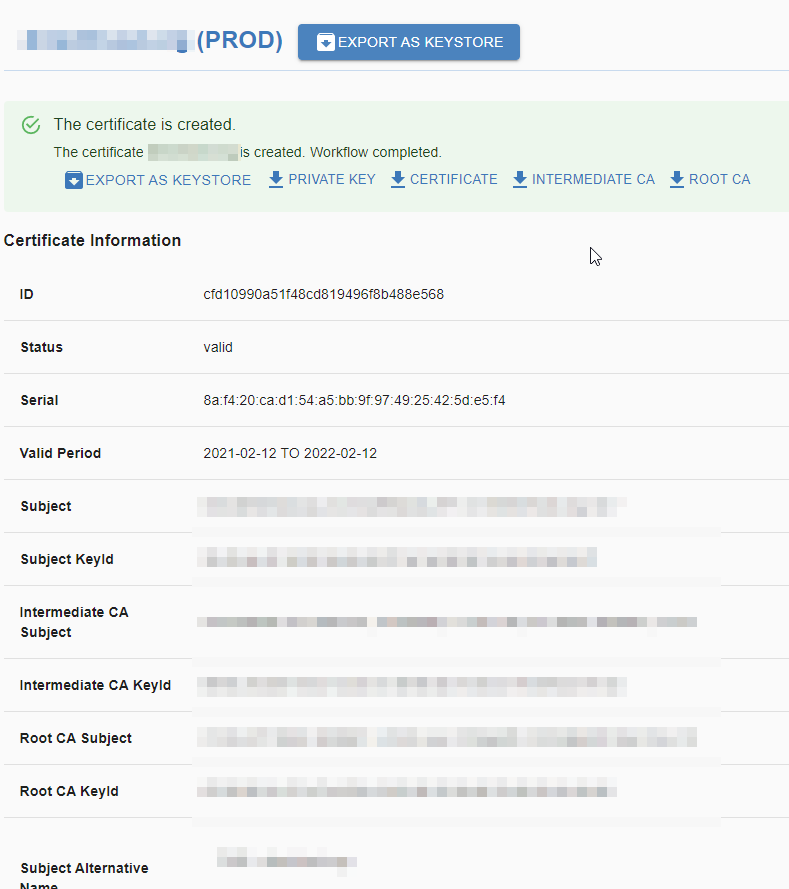

If MaxMD generated the CSR for you, the certificate, CA certificates (intermediate and root), and the private key can be exported together as a Keystore. On the certificate screen, you should see the certificate information and an option to export as keystore. Click EXPORT AS KEYSTORE.

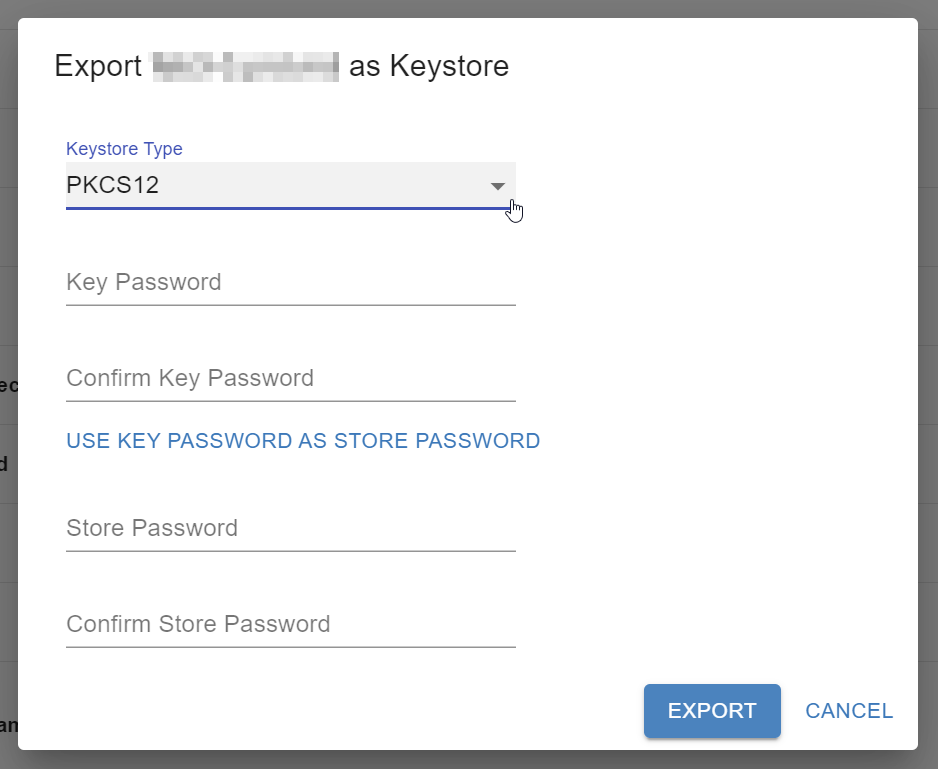

When exporting your key, select the Keystore Type from the drop down (JKS or PKCS12). Use JKS for Java environments up to Java 8. Java 9+ and all other environments should choose PKCS12. Here you can add optional passwords to protect the keystore.


Clicking EXPORT will download domainname.pfx to your computer.

Downloading your Certificate (Upload CSR method)

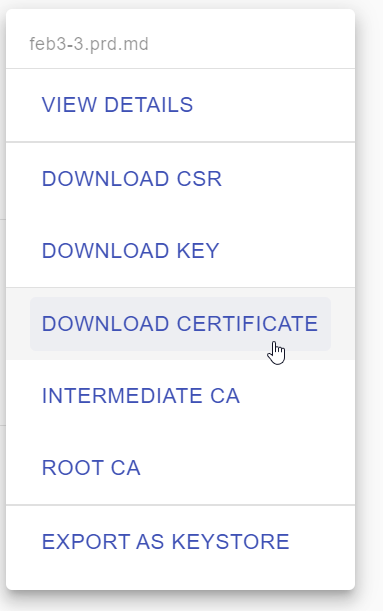

From the Certificates tab, click VIEW --> DOWNLOAD CERTIFICATE




You should see domainname.crt download to your computer.

Next, download the Intermediate CA certificate, and Root CA certificate files.

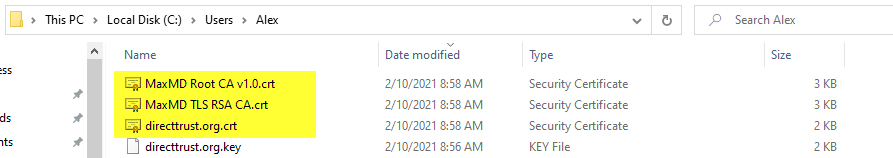

You should now have three .crt files:
  1. domainname.crt
  2. MaxMD TLS RSA CA.crt
  3. MaxMD Root CA v1.0.crt


Next, we need to use an OpenSSL command to join our three .crt files with your private key to generate a PKCS12 file. From the same directory path with all four files, open the command prompt, with OpenSSL installed, use the following command with real values for:
  1. domainname.crt
  2. privatekey.key
  3. MaxMD TLS RSA CA.crt
  4. MaxMD Root CA v1.0.crt

openssl pkcs12 -export -in domainname.crt -inkey privatekey.key -out domainname.pfx -certfile "MaxMD TLS RSA CA.crt" -certfile "MaxMD Root CA v1.0.crt"


After creating the pkcs12 file, you will be asked to create an optional Export password (press enter to skip password creation):


You should now have a domainname.pfx file:


4. Installing your Certificate

Installation of your certificate will depend on your environment.

Windows

Installing a keystore (.pfx)

Ensure the domainname.pfx file is on the machine you intend to install the certificate. Double click the domainname.pfx file to start the Certificate Import Wizard.

Select Local Machine and click Next.

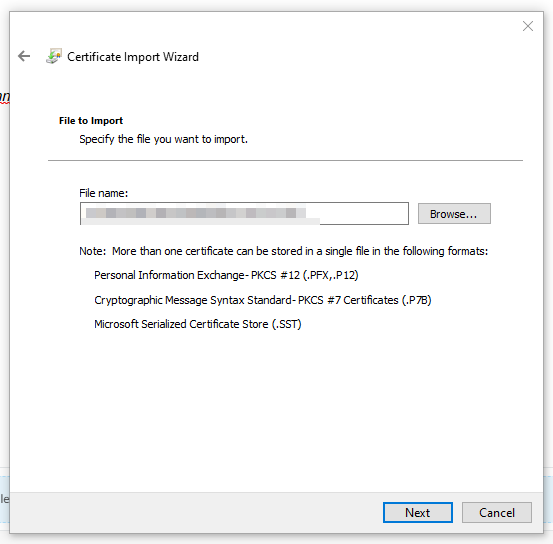

Verify you are importing the intended file and click Next.


Enter the password (if you created one when exporting your keystore) and click Next.


Choose where to store the certificates and click Next.

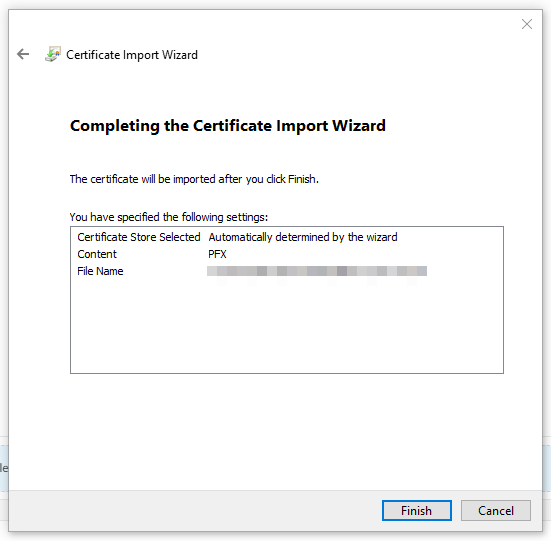

Confirm the settings and click Finish!


Certificate Self-Service Management

In the left navigation bar, you will find your organization name, Home, Sponsors, Certificates.
Users that are Sponsors for more than one organization will be able to choose which organization they want to view by clicking on the organization name.


Home

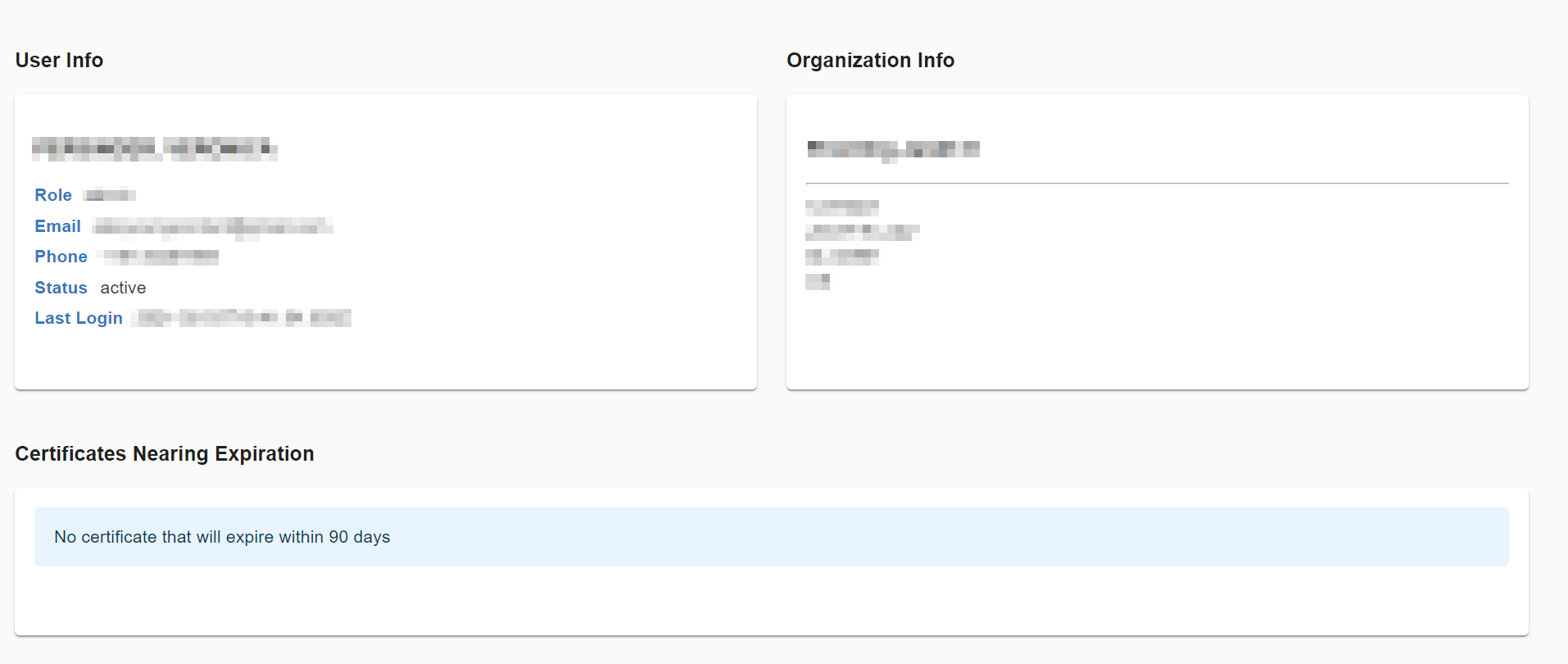

From your MaxMD account homepage, you will see your User and Organization information along with any certificates that are nearing expiration.


Sponsors

The Sponsors tab shows all users for your Organization.


Certificates

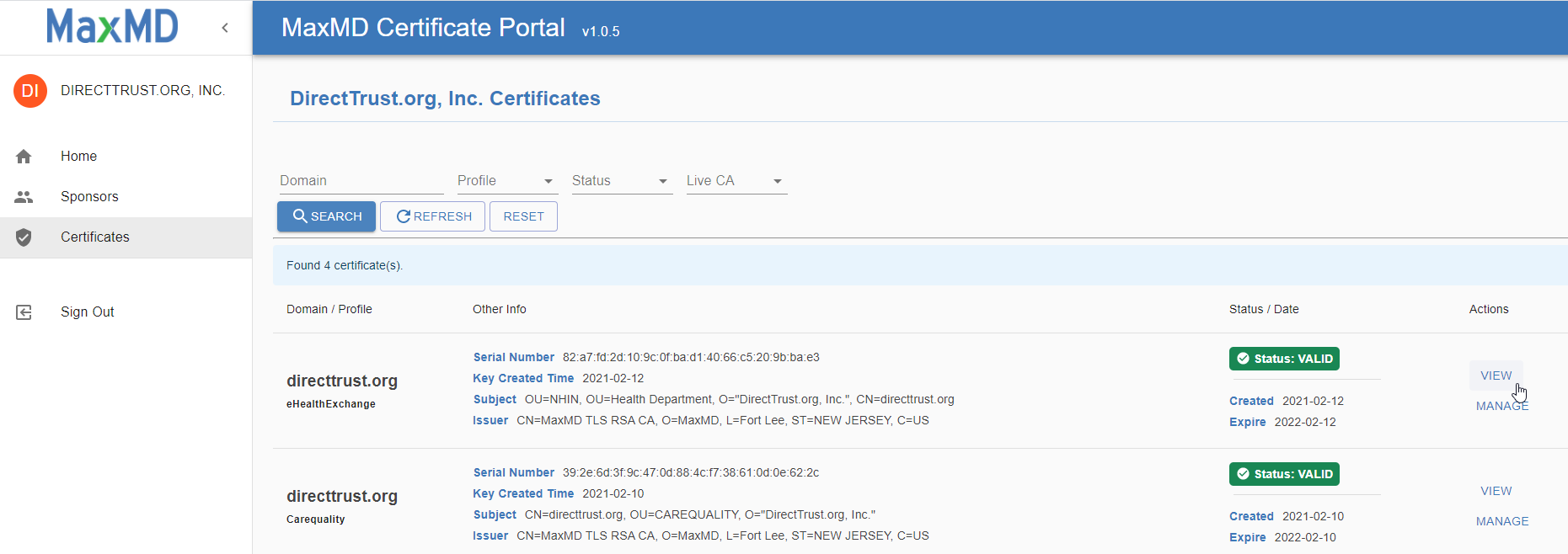

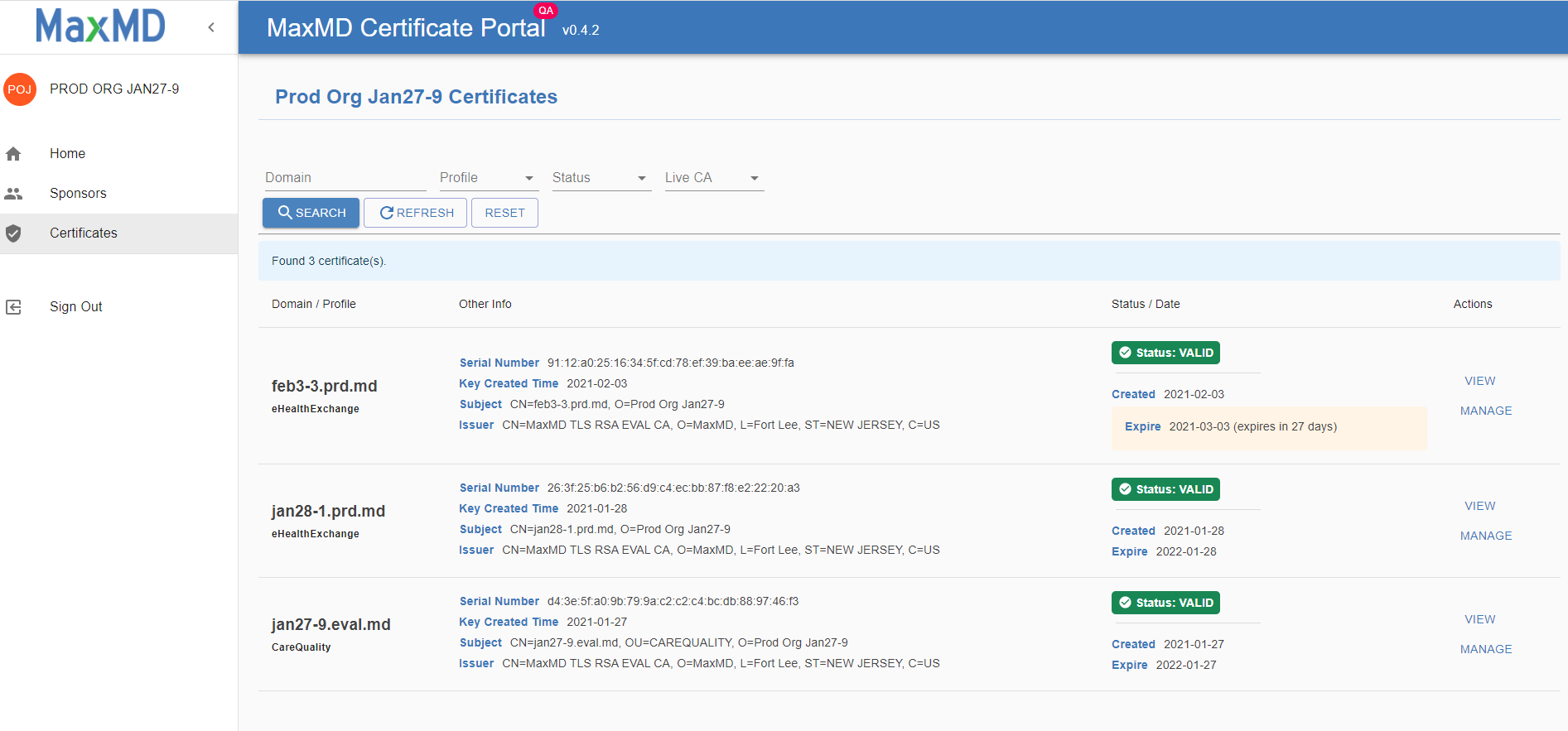

The Certificates tab shows all certificates for your organization.

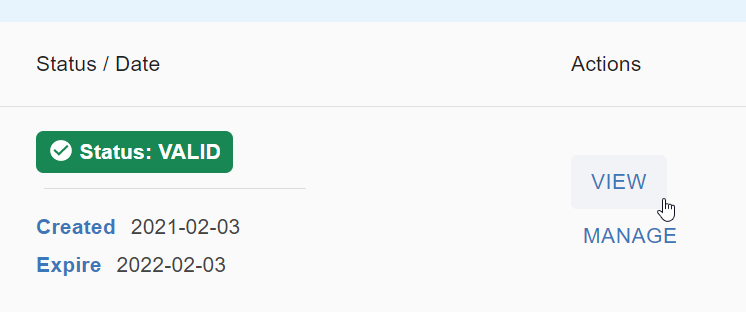

To view more options for a certificate, click the VIEW button.


From here, you can:


Renewing Certificates

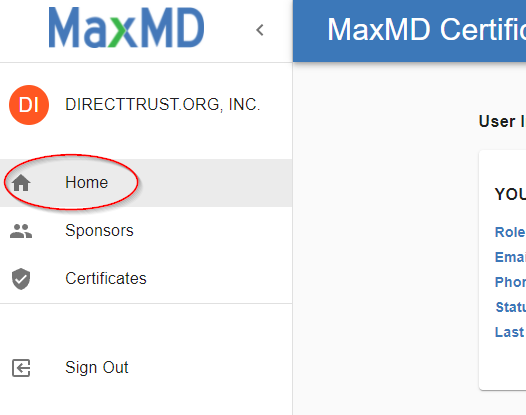

To Renew a certificate, navigate to the Home tab on the left navigation bar.


Any certificate with an expiration date within 90 days is available for Renewal. Locate the certificate that you wish to renew, and click the Renew button.


If your domain is currently verified, you can click Next. Otherwise, refer to the above instructions on how to complete domain verification again.


If your original certificate was created with a CSR generated by MaxMD, you can click the AUTO GENERATE CSR button to proceed to the next screen. If your original certificate was created with your own uploaded CSR, you will need to reupload a CSR.


OR

If the CSR was created/uploaded correctly, click CONTINUE.


Then, click CREATE CERTIFICATE.

Revoking Certificates

To Revoke a certificate, navigate to the Certificates tab on the left navigation bar.

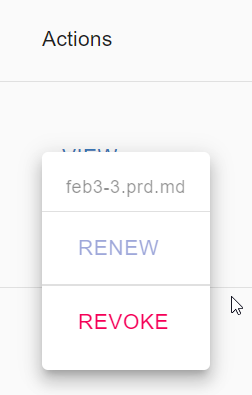

Choose which certificate you would like to Revoke, and click Manage.


Then, choose Revoke.
